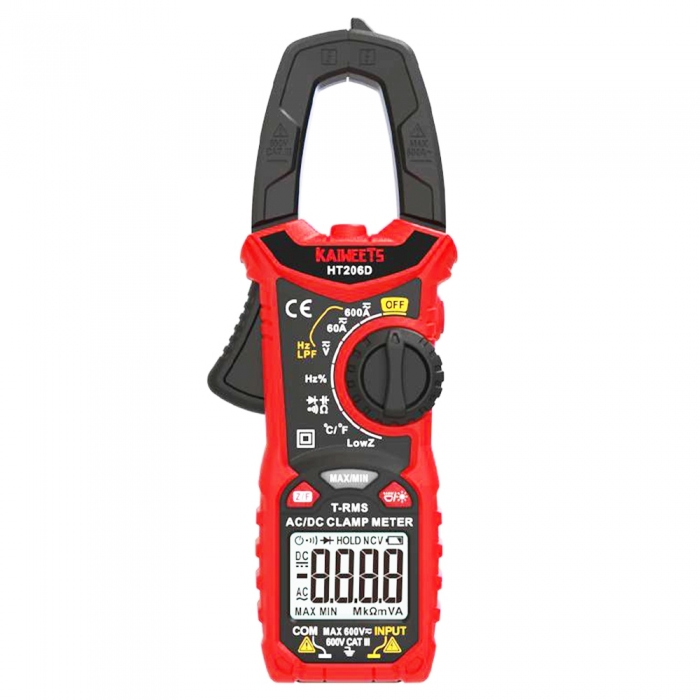

KAIWEETS HT206D Digital Clamp Meter,LowZ

Highlights

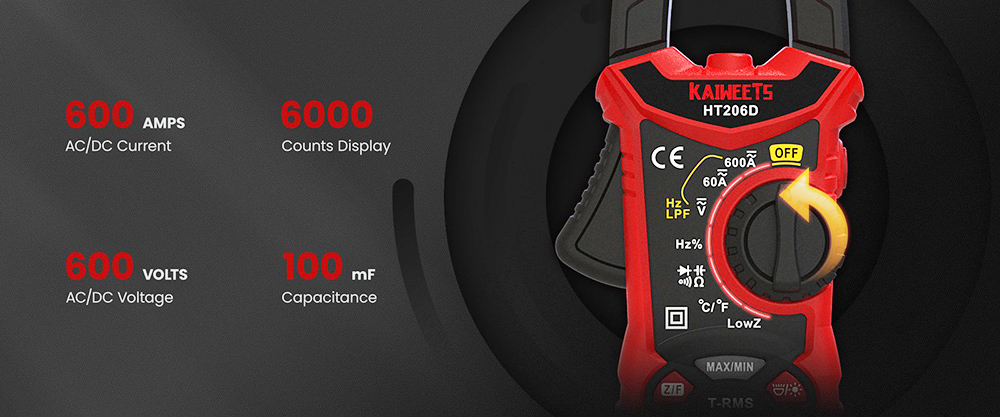

True-RMS clamp meter

This multimeter can accurately measure AC/DC Current, AC/DC Voltage, Frequency or Duty Cycle, Resistance, Capacitance and also provides Diode, Continuity, and Temperature tests. True RMS for accurate measurements on non-linear loads.

LowZ & LPF

Low input impedance helps prevent false readings due to ghost voltage. Low Pass Filter (LPF) for accurate measurement of variable frequency drive signals when measuring motors and transformers. To measure the current, you need to clamp the meter around one of the wires and not the whole power cord.

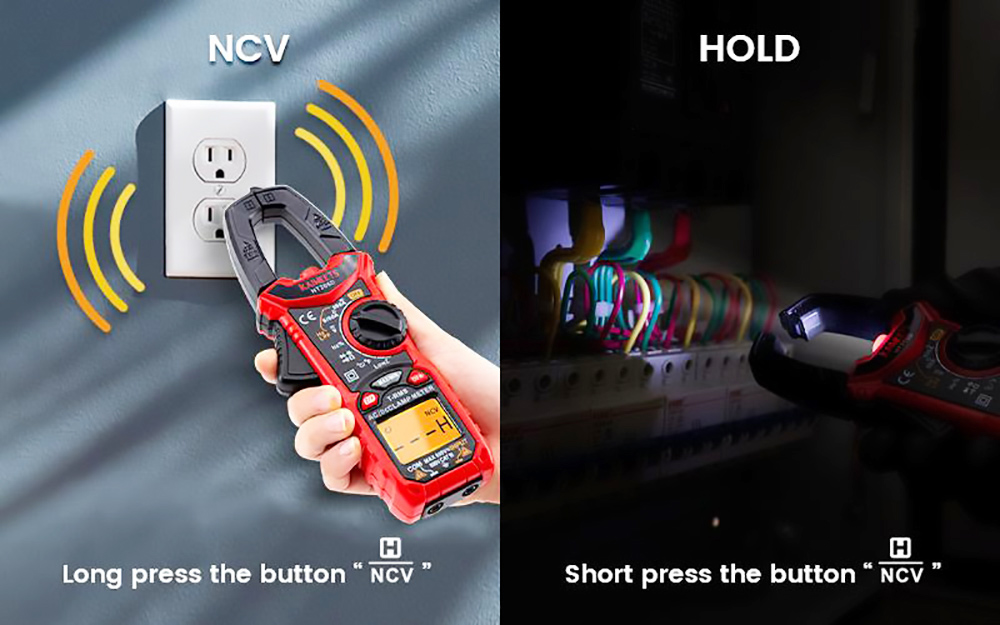

NCV Detection Function

Non-contact voltage detection effectively checks the electrical status by measuring EM field intensity without touching any wires.

Multi-function

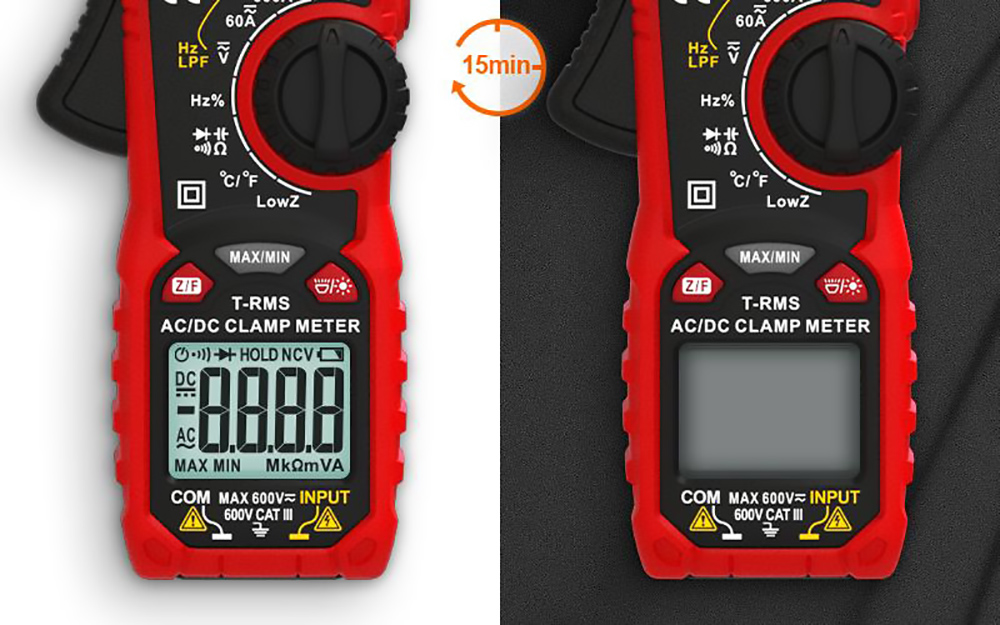

Two-color backlit LCD Display - When the voltage is> 80V, the current is > 3A, the LCD backlit screen turns red to warn you of high voltage.

Specification
